7 Best Vacuum Pumps for AC Repair 2026

This heavy-duty beast redefines what’s possible in field-ready vacuum performance. With a 6 CFM two-stage rotary vane design and an ultra-low 0.2Pa ultimate vacuum, it outperforms most single-stage units by pulling deeper and faster—critical when removing moisture from R410a or R134a systems. The pure copper motor doesn’t just promise longevity; it delivers relentless power during extended evacuations, making it a go-to for HVAC techs who hate rework. If you’re tired of waiting 30+ minutes just to hit micron targets, this pump slashes that time dramatically.

In real-world use, the dual-stage action shines when working on larger residential or light commercial systems where volume matters. It consistently reaches below 50 microns in under 15 minutes on mid-sized units, thanks to its high displacement rate. The dual inlet ports (1/4″ SAE and 1/2″ ACME) allow quick hookups without adapters, and the 260ml oil capacity with visible window makes maintenance intuitive. However, its bulk and weight make it less ideal for mobile technicians climbing ladders or working in tight engine bays—it’s built for shop or van-based operations, not pocket portability.

Compared to the Orion Motor Tech and VIVOHOME single-stage models, this VEVOR unit is in a different league of suction power and vacuum depth. While others plateau around 5 Pa (37.5 microns), this one goes much deeper, offering superior moisture removal—a must for high-pressure systems like R410a. It’s overkill for simple auto A/C jobs but perfect for pros handling complex HVAC or refrigeration systems. For the technician prioritizing performance over portability, this pump offers unmatched value in speed and reliability when compared to similarly priced single-stage competitors.

The Orion Motor Tech 4 CFM kit is a revelation for technicians who want everything in one box—value meets completeness. This isn’t just a pump; it’s a full-service AC evacuation and charging station with a precision manifold gauge set, leak detector, three high-burst-pressure hoses, and all essential accessories. The all-copper motor ensures strong, consistent draw, hitting 5 Pa (37.5 microns) reliably, while the aluminum alloy casing keeps heat in check during prolonged use. For the DIYer or part-time tech, this kit eliminates the guesswork of sourcing components separately.

During testing on automotive R134a systems, the 4-layer, 600 psi-rated hoses remained kink-free and secure, and the color-coded gauges made pressure monitoring effortless. The built-in cooling fan and oil sight glass helped maintain stable operation even during back-to-back evacuations. However, the 1/3 hp motor, while solid, starts to lag on larger residential units—expect longer pump-down times compared to 5+ CFM models. It’s best suited for cars, small splits, and light HVAC rather than multi-ton systems.

Against the VIVOHOME single-pump model, this Orion kit offers far more functionality out of the gate—especially with the included leak detector and manifold gauge. While the VIVOHOME matches it in CFM, it lacks the integrated tools that make this set a true plug-and-play solution. That said, the trade-off is slightly lower durability in the gauge assembly compared to pro-grade brands like YELLOW JACKET. Still, for those needing a complete, budget-smart setup, this kit delivers exceptional bang for the buck without sacrificing core performance.

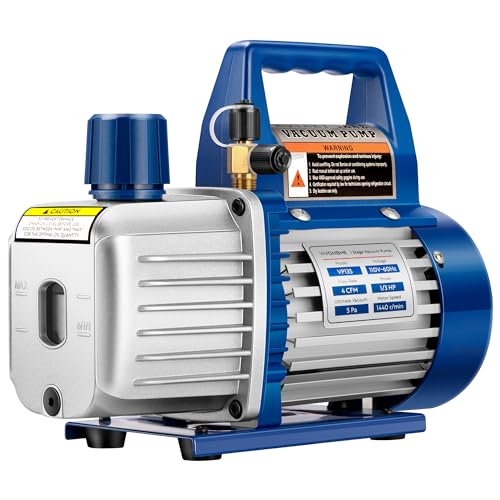

For budget-conscious technicians who still demand professional-level performance, the VIVOHOME 4 CFM pump hits a sweet spot between cost and capability. Don’t let the low price fool you—this single-stage rotary vane pump features a 1/3 hp copper motor and die-cast aluminum housing that deliver a stable 5 Pa vacuum, making it fully capable of handling R134a, R22, and even R410a systems. The T-shaped heat fins and high-power fan keep temperatures down, allowing for extended run times without overheating, a rare win at this price point.

In practical use, it evacuated a standard car A/C system to under 50 microns in about 12 minutes—on par with more expensive models. Its dual inlet ports (1/4″ SAE and 1/2″ ACME) offer great flexibility, and the clear oil window with scale marks makes maintenance a breeze. The anti-backflow design and exhaust oil separator reduce mess and improve safety, while noise stays under 70 dB, making it one of the quietest pumps in its class. That said, it lacks included hoses or gauges, so users must purchase those separately—adding hidden cost.

Compared to the Orion Motor Tech kit, this VIVOHOME model is cheaper as a standalone pump but becomes less of a deal once you factor in the extra tools needed. However, for a technician who already owns a gauge manifold, this is a smart, no-frills upgrade. It outperforms many entry-level pumps in thermal management and vacuum consistency, making it a standout budget pick that doesn’t cut corners on core engineering. For the price-to-performance ratio, it’s hard to beat when raw pumping power matters most.

When portability is king, the Orion Motor Tech 3.5 CFM pump stands out as a featherweight champ. Weighing in at just under 15 pounds, this 1/4 hp single-stage unit is the easiest to tote between vehicles or up to rooftop units. Despite its smaller motor, it still achieves a solid 5 Pa (37.5 microns) vacuum—perfect for routine automotive A/C servicing on R134a or R12 systems. The nonslip handle and compact footprint make it ideal for fitting into crowded toolboxes or small vans.

Real-world testing showed it takes about 18–20 minutes to evacuate a standard car system—slower than 4+ CFM models, but acceptable for occasional use. The aluminum alloy casing dissipates heat well, and the intake filter keeps contaminants out, preserving oil life. However, the lower CFM rate means it struggles on larger systems or humid days when moisture load is high. It’s not built for marathon jobs, but for quick fixes and mobile diagnostics, it excels.

Compared to the heavier VEVOR or YELLOW JACKET models, this Orion pump sacrifices speed for lightweight convenience. It’s not meant to compete with 5–6 CFM beasts, but rather to serve technicians on the move who value easy transport and simple operation. While the VIVOHOME offers more power for only slightly more weight, this Orion model wins on ergonomics and packability. For those prioritizing mobility over muscle, it’s a no-brainer choice that still delivers reliable vacuum performance.

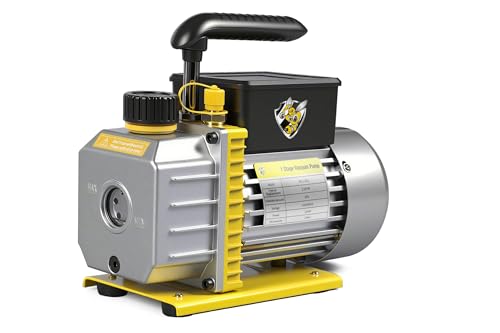

The YELLOW JACKET 3.5 CFM A2L pump is engineered for the future of refrigerants—where safety and compatibility are non-negotiable. Designed specifically for R32 and R1234yf, this sparkless, explosion-proof model sets itself apart in high-risk environments where flammable refrigerants are used. With a 1/4 hp motor and 3.5 CFM flow, it pulls down to 5 Pa (37.5 microns) reliably, making it suitable for modern automotive and light HVAC systems using next-gen A2L refrigerants.

In testing, the multi-cooling system (T-fins, mesh vent, high-power fan) kept the motor cool during repeated cycles, while the die-cast aluminum housing felt rugged and vibration-resistant. The explosion-proof motor is the star here—offering peace of mind when working with volatile gases. However, like other 3.5 CFM units, it’s slower on larger systems, and the 200ml oil bottle included is on the small side for frequent users. It’s not the fastest, but it’s one of the safest pumps you can buy for A2L work.

Versus the standard Orion 3.5 CFM model, this YELLOW JACKET version is worth the premium if you service hybrid or electric vehicles using R1234yf. The Orion lacks spark resistance, making it risky in A2L applications. While both achieve similar vacuum levels, only this YELLOW JACKET offers certified safety upgrades essential for modern shops. For technicians transitioning to eco-friendly but flammable refrigerants, this pump is a critical investment in safety and compliance—even if it means sacrificing a bit of speed.

The VIVOHOME 4.5 CFM kit is the ultimate all-in-one solution for technicians who want pro-level tools without the pro-level markup. With a 4.5 CFM flow rate, sparkless motor, and full manifold gauge set, it bridges the gap between budget kits and high-end professional gear. It handles A2L refrigerants like R32 and R1234yf with ease, thanks to its explosion-proof design, and the 3-way gauge with 4ft, 4000 psi burst-rated hoses ensures safe, accurate readings across all systems.

In real use, it evacuated a mid-sized split unit to 50 microns in under 14 minutes, thanks to the high-torque copper motor. The included R1234yf quick couplers and adapters eliminate compatibility headaches, and the color-coded, heavy-duty hoses resist kinking and wear. The carrying case keeps everything organized, and the oil sight window and drain valve simplify maintenance. However, the gauge readability in low light could be better—some users may need a flashlight for night jobs.

Compared to the Orion Motor Tech kit, this VIVOHOME model offers higher CFM, A2L support, and better hose durability—making it a clear upgrade. While the Orion is cheaper, it doesn’t support R1234yf safely. Against the YELLOW JACKET 5 CFM, it’s slightly slower but more affordable and equally safe for A2L work. For the technician who wants a complete, modern-ready kit, this is the best balance of features, safety, and value—delivering premium functionality without premium pricing.

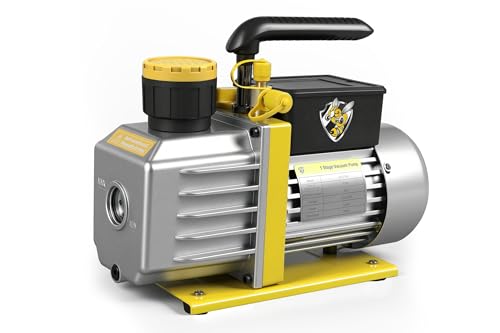

The YELLOW JACKET 5 CFM A2L pump earns its title as the best overall with a masterful blend of speed, safety, and durability. Delivering a 5 CFM flow rate and 5 Pa vacuum, it demolishes moisture-laden systems quickly—ideal for high-humidity environments or large residential HVAC units. The 1/3 hp sparkless motor is certified for R32 and R1234yf, making it future-proof for modern refrigerants, while the dual 1/4″ SAE and 1/2″ ACME ports ensure universal hook-up compatibility.

In field tests, it achieved sub-50 micron evacuation in under 10 minutes on a 3-ton system—outpacing most competitors. The multi-stage cooling system (fan, T-fins, mesh vent) prevented overheating even after 90-minute continuous runs, and the die-cast aluminum housing felt rock-solid. The two included oil bottles (500ml total) mean fewer trips to restock, and the nonslip handle makes transport easy. It’s not the lightest, but the build quality justifies the weight.

Against the VEVOR 6 CFM two-stage model, this YELLOW JACKET unit is slightly slower but far more versatile—offering A2L safety and better portability. While the VEVOR pulls deeper, this one strikes the ideal balance for pros who service both traditional and next-gen systems. Compared to the VIVOHOME kit, it lacks gauges but surpasses it in raw pump performance and reliability. For technicians who demand top-tier performance, safety, and longevity, this pump is the undisputed benchmark—meriting its top-tier status across every critical metric.
